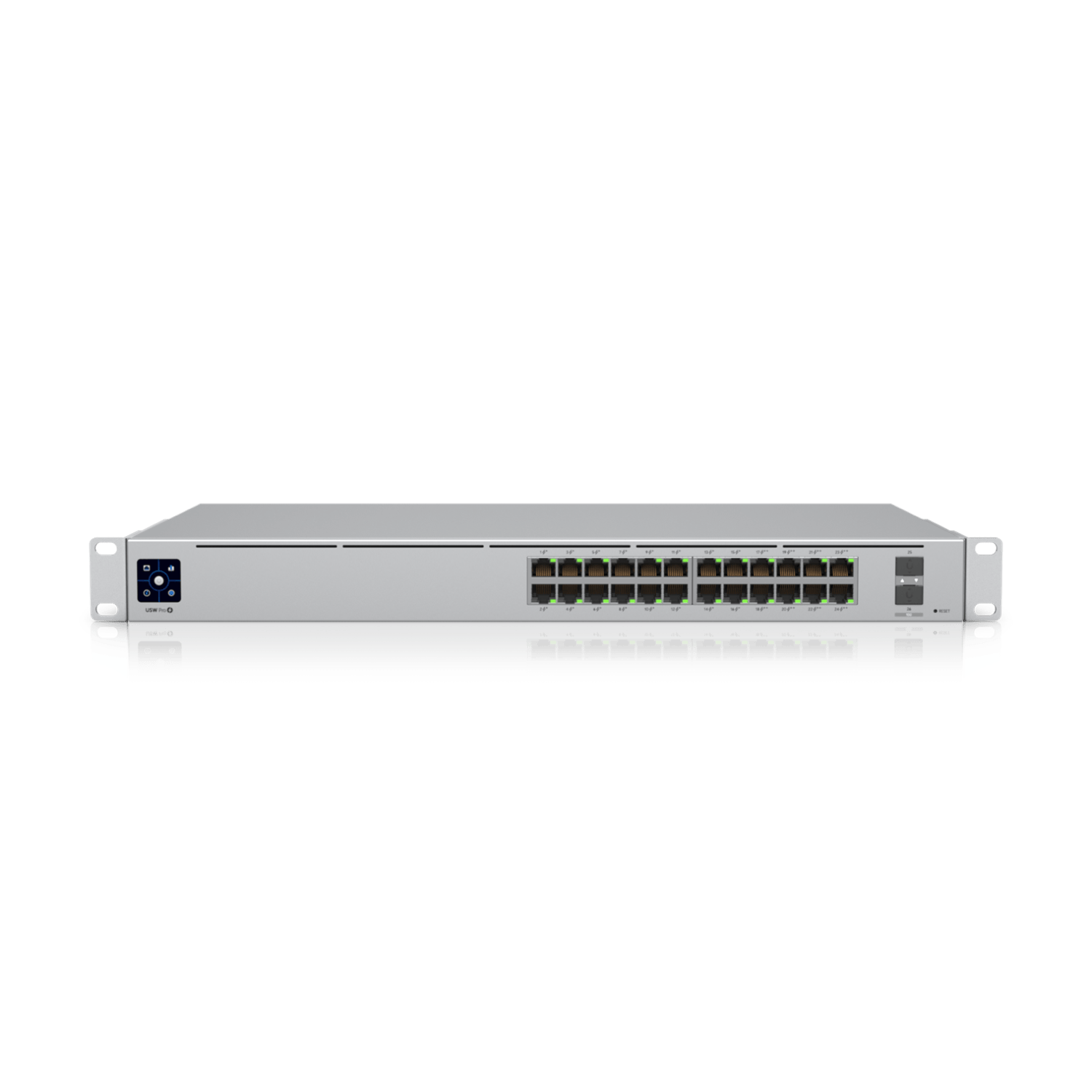

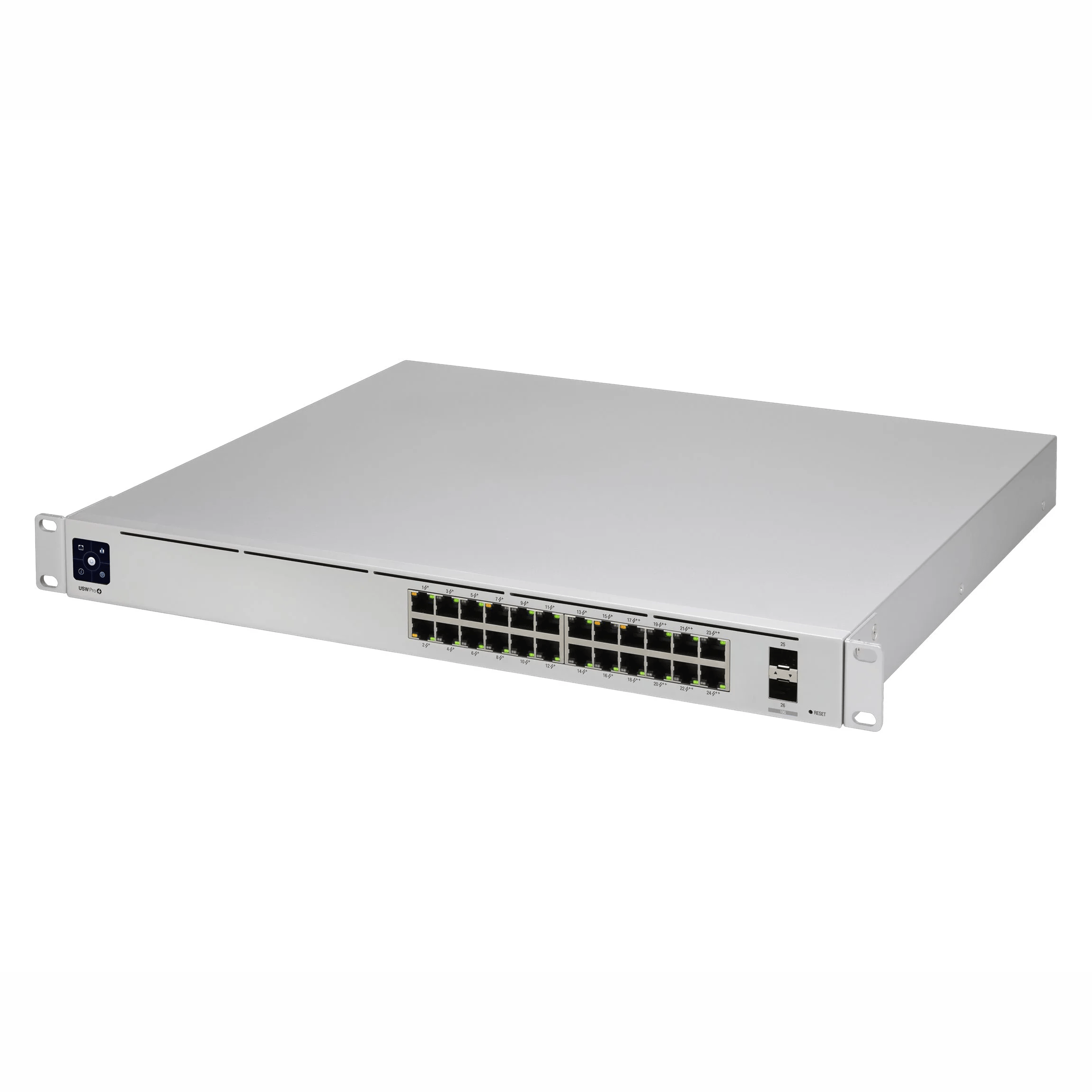

Ubiquiti USW-Pro-24-PoE switch

Ubiquiti Networks UniFi Pro PoE 24-Port Gigabit Managed PoE Network Switch with SFP+

A 24-port, Layer 3 switch capable of high-power PoE++ output.

  • (16) GbE PoE+, (8) GbE PoE++ ports
  • (2) 10G SFP+ ports
  • 400W total PoE availability
  • DC power backup-ready
  • Layer 3 switching
  • Near-silent cooling

₦1,300,000.00

Ubiquiti UniFi Pro PoE 24-Port Gigabit Managed Switch with SFP+

The Ubiquiti USW-Pro-24-PoE is a fully manageable, second-generation 24-port Gigabit switch built for growing business networks. With Layer 3 protocol support and a total power budget of 400W, it powers demanding devices like high-resolution security cameras while delivering fast, non-blocking throughput across every port.

Key Features

  • 24 Gigabit RJ45 ports – 16x PoE+ (32W) and 8x PoE++ (64W) for power-intensive devices
  • 2x 10 Gb/s SFP+ ports for fiber uplinks or high-speed network storage
  • 400W total PoE budget across all ports
  • 88 Gb/s switching capacity, 44 Gb/s non-blocking throughput, 65.47 Mpps forwarding rate
  • Layer 3 protocol support – inter-VLAN routing, static routing, and DHCP server functionality
  • DC power backup-ready via external power interface for redundancy if the internal PSU fails
  • 1.3-inch touchscreen display for on-device monitoring and management
  • Near-silent passive cooling and managed via the UniFi Network application

Who This Is For

The USW-Pro-24-PoE suits growing businesses needing a robust, high-capacity PoE switch for cameras, access points, and phones, network administrators who want Layer 3 routing features without stepping up to a dedicated router, and installers who want SFP+ fiber uplink flexibility alongside 24 Gigabit ports.

Full Specifications

Ports & Power

Spec Detail
Ports 24x Gigabit RJ45 (16 PoE+, 8 PoE++), 2x 10G SFP+
Total PoE Availability 400W
PoE Standards 802.3at (PoE+), 802.3bt (PoE++)
Power Redundancy DC power backup-ready

Performance & Management

Spec Detail
Switching Capacity 88 Gbps
Non-Blocking Throughput 44 Gbps
Forwarding Rate 65.47 Mpps
Layer Layer 3
Form Factor Rack mount (1U)
Management 1.3-inch touchscreen, UniFi Network application

Why Buy from Foretec Online

  • Genuine, sealed products sourced for the Nigerian market
  • Transparent Naira pricing with no hidden charges
  • Fast delivery across Abuja, Lagos, Kano, Port Harcourt, and beyond
  • Responsive customer support before and after your purchase

Order the Ubiquiti USW-Pro-24-PoE Today

This unit is new and sealed. Browse more network switches from Foretec, or order the UniFi Pro 24 PoE now.

SKU: USW-Pro-24-PoE Categories: ,

Based on 0 reviews

0.0 overall
0
0
0
0
0

Be the first to review “Ubiquiti Networks UniFi Pro PoE 24-Port Gigabit Managed PoE Network Switch with SFP+”

There are no reviews yet.

FAQs

How much PoE power does this switch provide?
A total of 400W across 16 PoE+ (32W) ports and 8 PoE++ (64W) ports.
Does this switch support Layer 3 routing?
Yes, including inter-VLAN routing, static routing, and DHCP server functionality.
What is the difference between this switch and the Pro HD 24 PoE?
The Pro HD 24 PoE offers higher switching capacity (230 Gbps vs 88 Gbps), a higher PoE budget (600W vs 400W), and 2.5GbE ports instead of standard Gigabit ports, at a higher price point.
How is this switch managed?
Via its built-in 1.3-inch touchscreen display, or through the UniFi Network application for full configuration and monitoring.
Is this unit new?
Yes, this unit is sold new and sealed by Foretec.
Mechanical
Dimensions 442 x 285 x 44 mm (17.4 x 11.2 x 1.7″)
Weight Without mounting brackets: 4.3 kg (9.5 lb)
With mounting brackets: 4.4 kg (9.7 lb)
Enclosure material SGCC steel
Hardware
Management interface Ethernet In-Band
Networking interface (24) GbE RJ45 ports
(2) 1/10G SFP+ ports
PoE interface (16) PoE/PoE+ (Pins 1, 2+; 3, 6-)
(8) 60W PoE++; PoE/PoE+ (Pins 1, 2+; 3, 6-) / PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 😎
Total non-blocking throughput 44 Gbps
Switching capacity 88 Gbps
Forwarding rate 65.472 Mpps
Power method (1) Universal input, 100—240V AC, 50/60 Hz
(1) USP-RPS DC input, 52V DC, 7.69A; 11.5V DC, 2.61A
Power supply AC/DC, internal, 450W
Supported voltage range 100—240V AC
Max. power consumption 50W (Excluding PoE output)
Total available PoE 400W
Max. PoE wattage per port by PSE PoE+: 32W
PoE++: 64W
Voltage range PoE mode PoE: 44—57V
PoE+: 50—57V
ESD/EMP protection Air: ± 16kV, contact: ± 12kV
LCM display (1) 1.3″ touchscreen
Button Factory reset
Shock and vibration ETSI300-019-1.4 Standard
Ambient operating temperature -5 to 40° C (23 to 104° F)
Ambient operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
Switching Features
Layer 2 features IGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs
Layer 3 features DHCP for locally-managed networks
DHCP relay
Inter-VLAN routing between networks on same switch
Static routing between local networks
Network isolation with ACLs
LEDs
System Status
Ethernet PoE
Speed/link/activity
SFP+ Link/activity
RPS Status
