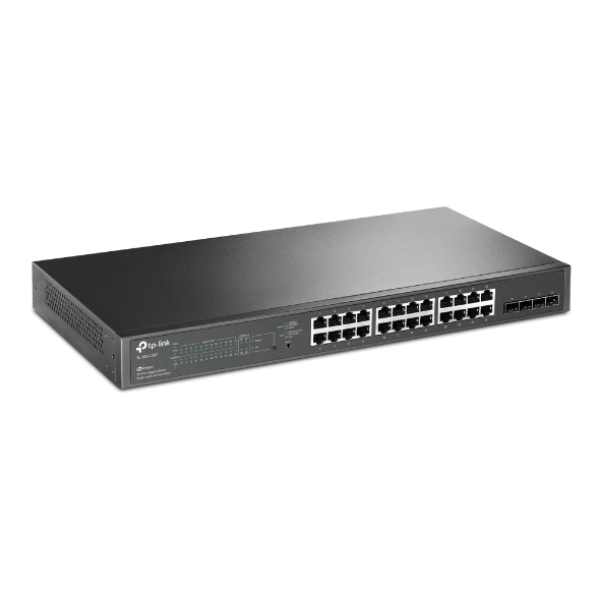

• TP-Link TL-SG2428P 24-Port PoE+ Switch
TP-Link TL-SG2428P 24-Port PoE+ Switch

TP-Link TL-SG2428P JetStream 28-Port Gigabit Smart Switch with 24-Port PoE+

Key Features

  • 24 × Gigabit PoE+ (802.3af/at) RJ45 ports
  • 4 × Dedicated Gigabit SFP slots for fibre uplinks
  • 250W total PoE budget with up to 30W per port
  • 56 Gbps switching capacity
  • 41.7 Mpps forwarding rate
  • 32MB Flash and 256MB DRAM
  • Omada SDN support with cloud, app, and centralized management
  • Standalone management via Web UI, CLI, SNMP, and RMON
  • Static Routing for efficient Layer 3 traffic management
  • Advanced security including IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, and RADIUS
  • L2/L3/L4 QoS for optimized traffic prioritization
  • IGMP Snooping for efficient multicast traffic management
  • Full IPv4/IPv6 dual-stack support with MLD Snooping and IPv6 Neighbor Discovery
  • Rack-mountable metal enclosure for professional installations

₦379,500.00

TP-Link TL-SG2428P JetStream 28-Port Gigabit Smart Switch with 24-Port PoE+

The TP-Link TL-SG2428P 24-Port PoE+ Switch  is a high-performance L2+ Managed Gigabit Switch built for businesses, enterprise networks, schools, hotels, and surveillance systems. Equipped with 24 Gigabit PoE+ ports and 4 dedicated Gigabit SFP slots, it delivers both data and power over a single Ethernet cable, making it ideal for powering IP cameras, wireless access points, VoIP phones, and other PoE-enabled devices.

With a 250W PoE power budget and support for up to 30W per PoE port, the switch provides reliable power for demanding network devices. Advanced Layer 2+ features, Static Routing, enterprise-grade security, and seamless Omada SDN integration make it an excellent choice for scalable and centrally managed networks.

Key Features of TP-Link TL-SG2428P 28-Port PoE+ Switch

  • 24 × Gigabit PoE+ (802.3af/at) RJ45 ports
  • 4 × Dedicated Gigabit SFP slots for fibre uplinks
  • 250W total PoE budget with up to 30W per port
  • 56 Gbps switching capacity
  • 41.7 Mpps forwarding rate
  • 32MB Flash and 256MB DRAM
  • Omada SDN support with cloud, app, and centralized management
  • Standalone management via Web UI, CLI, SNMP, and RMON
  • Static Routing for efficient Layer 3 traffic management
  • Advanced security including IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, and RADIUS
  • L2/L3/L4 QoS for optimized traffic prioritization
  • IGMP Snooping for efficient multicast traffic management
  • Full IPv4/IPv6 dual-stack support with MLD Snooping and IPv6 Neighbor Discovery
  • Rack-mountable metal enclosure for professional installations

Ideal For

  • Business and enterprise networks
  • IP surveillance (CCTV)
  • Wireless Access Point deployments
  • VoIP phone systems
  • Hotels and hospitality
  • Educational institutions
  • Data centres and server rooms
  • Small and medium-sized businesses

Full Specifications of TP-Link TL-SG2428P 24-Port PoE+ Switch

Spec Detail
Ports 24x Gigabit PoE+ (802.3af/at), 4x Gigabit SFP slots
PoE Budget Up to 250W total, up to 30W per port
Switching Capacity 56 Gbps
Forwarding Rate 41.7 Mpps
Flash / DRAM 32MB Flash, 256MB DRAM
Management Omada SDN (cloud/app), standalone via web, CLI, SNMP, RMON
Routing Static Routing
Security IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, RADIUS
QoS L2/L3/L4 QoS, IGMP Snooping
IPv6 Dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery
Form Factor Rack-mountable, durable metal casing
Model TP-Link TL-SG2428P

Why Buy from Foretec Online

  • Genuine, sealed products sourced for the Nigerian market
  • Transparent Naira pricing with no hidden charges
  • Fast delivery across Abuja, Lagos, Kano, Port Harcourt, and beyond
  • Responsive customer support before and after your purchase

Order the TP-Link TL-SG2428P Today

This unit is new and sealed. Browse more networking equipment from Foretec, or order the TL-SG2428P now.

SKU: TL-SG2428P Categories: ,

Based on 0 reviews

0.0 overall
0
0
0
0
0

Be the first to review “TP-Link TL-SG2428P JetStream 28-Port Gigabit Smart Switch with 24-Port PoE+”

There are no reviews yet.

FAQs

How much PoE power does this switch provide?
Up to 250W total across 24 PoE+ ports, up to 30W per port.
What is the switching capacity?
56 Gbps, with a 41.7 Mpps forwarding rate.
Can I manage this switch through the cloud?
Yes, via TP-Link's Omada SDN platform, using either the web interface or the Omada app.
Is this switch rack-mountable?
Yes, it has a durable metal casing and rack-mountable design.
Is this unit new?
Yes, this unit is sold new and sealed by Foretec.

HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
Interface
• 24× 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
• 4× Gigabit SFP Slots
Network Media
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
• 1000BASE-X: MMF, SMF
Fan Quantity 2
PoE+ Ports(RJ45)
• Standard: 802.3at/af compliant
• PoE+ Ports: 24 Ports
• Power Supply: 250 W
Dimensions ( W x D x H ) 17.3 × 8.7 × 1.73 in (440 × 220 × 44 mm)
Mounting Rack Mountable
Max Power Consumption
• 32.1 W (110 V/ 60 Hz with no PD connected)
• 308.6 W (110 V/ 60 Hz with 250 W PD connected)
Max Heat Dissipation 109.53 BTU/h (with no PD connected)
• 1052.94 BTU/h (with 250 W PD connected)
PERFORMANCE
Bandwidth/Backplane 56 Gbps
Packet Forwarding Rate 41.7 Mpps
MAC Address Table 8K
Packet Buffer Memory 4.1 Mbit
Jumbo Frame 9KB
SOFTWARE FEATURES
Quality of Service
• Support 802.1p CoS/DSCP priority
• Support 8 priority queues
• Queue scheduling: SP, WRR, SP+WRR
• Port/Flow- based Rate Limiting
• IPv6 QoS
• Voice VLAN
L2 and L2+ Features
• Static Routing
• DHCP Relay
• DHCP Server
• IGMP Snooping V1/V2/V3
• 802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group)
• Spanning Tree STP/RSTP/MSTP
• BPDU Filtering/Guard
• TC/Root Protect
• Loopback detection
• 802.3x Flow Control
• LLDP, LLDP-MED
VLAN
• Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs)
• MAC/Protocol-based VLAN
Access Control List • L2–L4 package filtering
• MAC ACL
• IP ACL
• Combined ACL
• IPv6 ACL
Security
• AAA
• Port Security
• DHCP Snooping
• IP-MAC-Port Binding
• IPv6-MAC-Port Binding
• ARP Inspection
• 802.1x and Radius Authentication
• SSH v1/v2
• SSL v3/TLSv1.2
• Broadcast/Multicast/Unknown-unicast Storm Control
• Dos Defend
IPv6
• Dual IPv4/IPv6 stack
• Multicast Listener Discovery (MLD) Snooping
• IPv6 neighbor discovery (ND)
• Path maximum transmission unit (MTU) discovery
• Internet Control Message Protocol (ICMP) version 6
• TCPv6/UDPv6
IPv6 Applications
• DHCPv6 Client
• Ping6
• Tracert6
• Telnet (v6)
• IPv6 SNMP
• IPv6 SSH
• IPv6 SSL
• Http/Https
• IPv6 TFTP
MANAGEMENT
Omada App Yes
Centralized Management
• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Management Features
• Web-based GUI and CLI management
• SNMP v1/v2c/v3,compatible with public MIBs and TP-Link private MIBs
• RMON (1, 2, 3, 9 groups)
• CPU Monitoring
• Port Mirroring
• Firmware Upgrade: TFTP & Web
• System Diagnose: VCT
• SYSLOG & Public MIBS
• Dual Image
• EEE
OTHERS
Certification CE, FCC, RoHS
Package Contents TL-SG2428P
• Power Cord
• Installation Guide
• Rackmount Kit
• Rubber Feet
System Requirements Microsoft® Windows® XP, Vista™ or Windows 7, Windows 8, Windows 10, MAC® OS, NetWare®, UNIX® or Linux.
Environment
• Operating Temperature: 0–50 ℃ (32–122 ℉);
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
