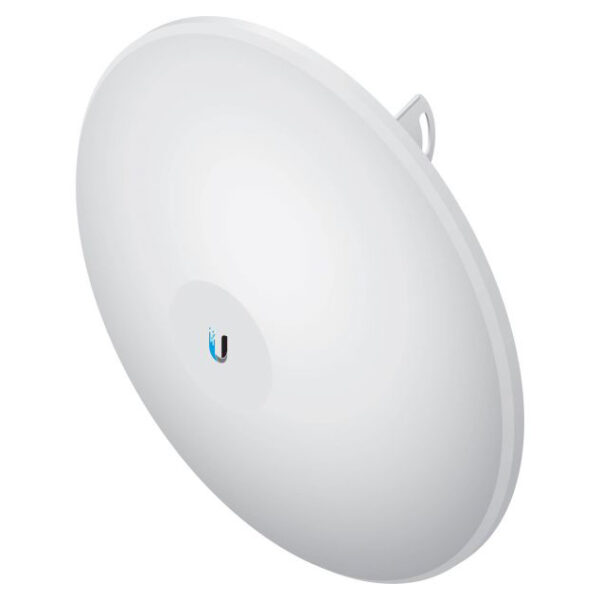

The Ubiquiti PowerBeam AC PBE-5AC-500 is a 5GHz high-performance wireless bridge for long-range point-to-point (PtP) connections, featuring a 500mm dish reflector and the proprietary airMAX® ac technology for speeds up to 450+ Mbps. It uses Ubiquiti’s InnerFeed® technology to integrate the radio and antenna, enhancing performance by eliminating cable loss and improving noise immunity due to its uniform beam width. The device boasts a compact, all-in-one design with a faster processor and is designed for cost-effective, high-performance deployments in high-noise environments.
Ubiquiti Network PBE-5AC-500mm | airMAX PowerBeam 5GHz Bridge
Key Features
High-Speed Performance: Utilizes airMAX® ac technology to deliver over 450 Mbps real TCP/IP throughput.
Integrated Design: InnerFeed® technology combines the radio and feedhorn, reducing cable loss and improving performance.
Superior Noise Immunity: The dish reflector design creates a tighter, more directional beam, filtering out interference in busy RF environments.
Long-Range Potential: Designed for point-to-point links, the device supports long-distance connections.
Protective Radome: The included radome shields the radio from environmental elements, ensuring durability.
Improved Scalability: The TDMA airMAX® protocol provides excellent scalability and low latency in multi-point networks.
| General Information | |
| Product Name | PBE-5AC-500 PowerBeam ac High-Performance airMAX Bridge (US, 2-Pack) |
| Manufacturer Part Number | PBE-5AC-500-ISO-US |
| Product Line | PowerBeam ac |
| Product Model | PBE-5AC-500-ISO |
| Packaged Quantity | 2 |
| Product Type | Wireless Bridge |
| Technical Information | |
| Wireless LAN Standard | IEEE 802.11ac |
| Frequency Band | 5 GHz |
| Interfaces/Ports | |
| Ethernet Technology | EthernetFast Ethernet Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| PoE PD Port | Yes |
| VGA | No |
| HDMI | No |
| USB | No |
| Powerline | No |
| Management Port | No |
| Physical Characteristics | |
| Form Factor | Pole-mountable |
| Height | 12.1″ |
| Width | 22.2″ |
| Depth | 22.2″ |
| Warranty | |
| Limited Warranty | 1 Year |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| Other Information | |
| Product Family | PowerBeam ac |
| Stock Details | |
| Manufacturer | Ubiquiti Networks |
| Manuf Part# | PBE-5AC-500-ISO-US |
