TP-Link Omada 300Mbps Wireless N Ceiling Mount Access Point

Key Features

  • Model: TP-Link EAP110 (300Mbps Wireless N Ceiling Mount Access Point)
  • Speed: Up to 300Mbps, 802.11 b/g/n
  • Antenna: 2x internal 4dBi omnidirectional
  • Power: Passive PoE (adapter included), up to 100m cable run
  • Management: Omada SDN cloud management and app
  • Guest network: Captive portal, SMS/Facebook Wi-Fi/Voucher authentication
  • Security: WPA/WPA2-Enterprise, 802.1X RADIUS, rogue AP detection
  • SSIDs: Up to 8 (Multi-SSID)
  • Mounting: Wall or ceiling
  • Condition: New, sealed

₦63,525.00

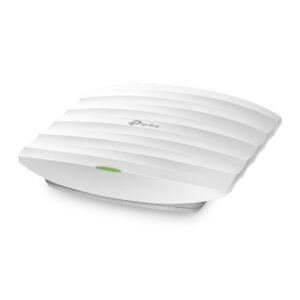

TP-Link EAP110 300Mbps Wireless N Ceiling Mount Access Point

The TP-Link EAP110 provides a flexible, easy-to-install, business-class wireless network solution, well suited to high-density environments like campuses, hotels, shopping malls, and offices.

Flexible Placement

The EAP110’s compact design blends seamlessly into any wall or ceiling surface, while Passive PoE support (adapter included) allows for quick, cable-free installation up to 100 metres, without running separate power to the unit.

Integrated into Omada SDN

The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to create a highly scalable network, all controlled from a single interface, with centralized cloud management and intelligent monitoring available through the Omada app.

Secure Guest Network

A captive portal offers multiple authentication options, including SMS, Facebook Wi-Fi, and vouchers, alongside enterprise-class Wi-Fi security like WPA/WPA2-Enterprise, 802.1X RADIUS authentication, and rogue AP detection.

Manage Performance and Access

Load balancing limits the number of users on each access point and removes devices with weak reception to keep your Wi-Fi running at peak performance, while scheduling lets you automatically reboot the access point or turn Wi-Fi on and off at set times. Multi-SSID support (up to 8 SSIDs) lets you separate different user groups on their own networks.

Full Specifications

Model TP-Link EAP110
Wireless Standard IEEE 802.11b/g/n
Data Rate Up to 300 Mbps
Antenna 2x internal 4dBi omnidirectional
Interface 1x Fast Ethernet (RJ-45), Passive PoE
Power 24V Passive PoE (adapter included)
Max SSIDs 8
Security WPA/WPA2-Enterprise, 802.1X RADIUS, Captive Portal
Management Omada SDN, Omada App, EAP Controller Software
Mounting Wall or ceiling
Condition New

Order Today

Get the TP-Link EAP110 300Mbps Wireless N Ceiling Mount Access Point at ₦63,525. Browse more access points. Order today and get fast delivery across Nigeria.

SKU: EAP110 Categories: ,

Based on 0 reviews

0.0 overall
0
0
0
0
0

Be the first to review “TP-Link Omada 300Mbps Wireless N Ceiling Mount Access Point”

There are no reviews yet.

FAQs

Can the TP-Link EAP110 be powered over Ethernet?
Yes, it supports Passive PoE with the adapter included in the box, allowing installation up to 100 metres from the power source without running separate power cabling.
What wireless speed does the EAP110 support?
It supports up to 300Mbps on 802.11 b/g/n (2.4GHz).
How many separate Wi-Fi networks can the EAP110 broadcast?
Up to 8 SSIDs, letting you separate different user groups onto their own networks.
Can I manage multiple EAP110 units centrally?
Yes, through the Omada SDN platform, the Omada app, or EAP Controller Software, all from a single interface.
Can this access point be mounted on a wall as well as a ceiling?
Yes, the mounting kit supports both wall and ceiling installation.
What is the price of the TP-Link EAP110 in Nigeria?
The TP-Link EAP110 300Mbps Wireless N Ceiling Mount Access Point is priced at ₦63,525 on Foretec Online.
HARDWARE FEATURES
Interface Fast Ethernet (RJ-45) Port *1（Support Passive PoE）
Button Reset
Power Supply 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
Power Consumption 2.8 W
Dimensions ( W x D x H ) 7.5×6.8×1.2 in (189.4×172.3×29.5mm)
Antenna Type Internal 2× 4 dBi Omni
Mounting Ceiling /Wall Mounting (Kits included)
WIRELESS FEATURES
Coverage 60㎡(650ft²)§
Wireless Client Capacity 100+**
Concurrent Clients 100+**
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency 2.4-2.4835GHz
Signal Rate 11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Reception Sensitivity 300M: -71dBm@10% PER
150M: -75dBm@10% PER
54M: -78dBm@10% PER
11M: -93dBm@8% PER
6M: -92dBm@10% PER
1M: -96dBm@8% PER
Wireless Functions Multiple SSIDs （Up to 8 SSIDs）
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control （Adjust Transmit Power on dBm）
QoS(WMM)
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK
Transmission Power CE:
<20dBm
FCC:
<26dBm
MANAGEMENT
Omada App Yes
Centralized Management • Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access Yes (Through OC300, OC200, or Omada Software Controller)
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1,v2c
System Logging Local/Remote Syslog Local/Remote Syslog
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
OTHERS
Certification CE, FCC, RoHS
Package Contents 300Mbps Wireless N Ceiling Mount Access Point EAP110
Passive PoE Adapter,
Power Cord,
Mounting Kits,
Installation Guide
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
