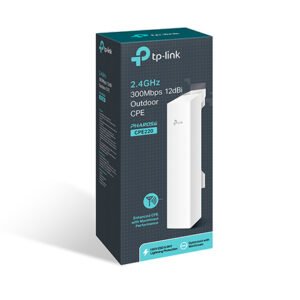

TP-Link 12dbi Outdoor CPE220 Access Point – 2.4GHz 300mbps

Key Features

  • Model: TP-Link CPE220 Outdoor CPE
  • Speed: 2.4GHz 802.11n, up to 300Mbps
  • Antenna: Built-in 12dBi, 2×2 dual-polarized directional MIMO
  • Transmit power: Adjustable, 0 to 30dBm/1000mW
  • Range: Over 13km, tested in the field (PtP/PtMP)
  • Ports: 2x shielded Ethernet (LAN) ports
  • Technology: Pharos MAXtream TDMA for improved throughput and latency in PtMP setups
  • Management: Pharos Control centralized management software
  • Operating modes: AP, Client, AP Router, AP Client Router (WISP)
  • Power: Passive PoE adapter included, supports up to 60m cable run, remote reset
  • Condition: New, sealed

₦78,900.00

TP-Link CPE220 2.4GHz 300Mbps 12dBi Outdoor Access Point

The TP-Link CPE220 is a cost-effective outdoor wireless CPE built for point-to-point (PtP), point-to-multipoint (PtMP), and outdoor Wi-Fi coverage applications, combining enterprise-grade hardware with a user-friendly management interface for both business and home use.

Enterprise Hardware, Built for the Outdoors

Qualcomm Atheros enterprise-level chipsets, high-gain antennas, and a specially designed weatherproof enclosure let the CPE220 operate reliably across a wide temperature range, from -40℃ to +70℃.

Long-Range Directional Antenna

A built-in 12dBi, dual-polarized MIMO antenna with a dedicated metal reflector delivers higher gain and lower noise interference, supporting long-distance wireless data transmission of over 13km in field testing, with transmission power adjustable from 0 to 30dBm.

MAXtream TDMA for Multi-Point Networks

As network scale grows, wireless collisions between CPEs and base stations can seriously reduce real throughput. TP-Link’s Pharos MAXtream TDMA technology mitigates this, improving throughput, capacity, and latency in point-to-multipoint deployments.

Centralized Management

Pharos Control software lets you manage every CPE220 in your network from a single PC, handling device discovery, status monitoring, firmware upgrades, and network maintenance, alongside a user-friendly web-based PharOS interface for more detailed configuration.

Full Specifications

Model TP-Link CPE220
Wireless Standard IEEE 802.11b/g/n
Frequency 2.4 GHz
Data Rate Up to 300 Mbps
Antenna 12dBi, 2×2 dual-polarized directional MIMO
Transmit Power Adjustable, 0−30dBm/1000mW
Range Over 13km (field-tested)
Ethernet Ports 2x shielded LAN ports
Power Passive PoE adapter included (up to 60m cable run)
Operating Modes AP, Client, AP Router, AP Client Router (WISP)
Operating Temperature -40℃ to +70℃
Condition New

Order Today

Get the TP-Link CPE220 Outdoor Access Point at ₦78,900. Browse more outdoor CPEs and access points. Order today and get fast delivery across Nigeria.

SKU: CPE220 Categories: ,

Based on 0 reviews

0.0 overall
0
0
0
0
0

Be the first to review “TP-Link 12dbi Outdoor CPE220 Access Point – 2.4GHz 300mbps”

There are no reviews yet.

FAQs

What is the maximum range of the TP-Link CPE220?
TP-Link tested it for wireless data transmission over 13km in field testing.
How many Ethernet ports does the CPE220 have?
It has 2 shielded LAN ports.
What operating modes does the CPE220 support?
It supports AP, Client, AP Router, and AP Client Router (WISP) modes.
How is the CPE220 powered?
It includes a Passive PoE adapter, supporting cable runs of up to 60m, and allows the device to be reset remotely.
Can I manage multiple CPE220 units from one place?
Yes, TP-Link’s Pharos Control software lets you manage device discovery, monitoring, firmware upgrades, and maintenance for all your CPE220 units from a single PC.
What is the price of the TP-Link CPE220 in Nigeria?
The TP-Link CPE220 2.4GHz 300Mbps 12dBi Outdoor Access Point is priced at ₦78,900 on Foretec Online.
HARDWARE FEATURES
Processor Qualcomm Atheros 560MHz CPU, MIPS 24Kc
Memory 64MB DDR2 RAM, 8MB Flash

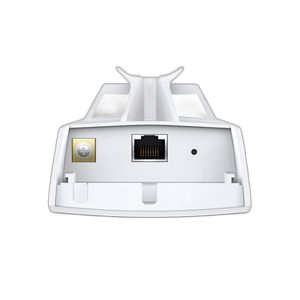

Interface 1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)
1 10/100Mbps Shielded Ethernet Port (LAN1)
1 Grounding Terminal
1 Reset Button
Power Supply Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
Voltage range: 16-27VDC
Power Consumption 10.8 Watts Max
Note: When deployed using Passive PoE, the power drawn from the power source will
be higher by some amount depending on the length of the connecting cable.
Dimensions ( W x D x H ) 11×3.1×2.1 inch (276×79×60 mm)
Antenna Type Built-in 12dBi 2×2 Dual-polarized Directional Antenna
Beam Width: 60° (H-Plane) / 30° (E-Plane)
Note: For more details, please refer to datasheet
Protection 15KV ESD Protection
6KV Lightning Protection
Enclosure Outdoor ASA stabilized plastic material
IPX5 waterproof Certification
WIRELESS FEATURES
Wireless Standards IEEE 802.11b/g/n (with Pharos MAXtream disabled)
Proprietary Protocol TDMA Mode (with Pharos MAXtream enabled)
Wireless Speeds Up to 300Mbps (40MHz,Dynamic)
Up to 144.4Mbps (20MHz,Dynamic)
Up to 72.2Mbps (10MHz,Dynamic)
Up to 36.1Mbps (5MHz,Dynamic)
Frequency 2.4~2.483GHz
Note: Available operating frequency may vary depending on the limitations
of the countries or regions in which the device is used.
Transmission Power 30dBm/1000mw (Adjustable power by 1dBm)
Note: Maximum transmission power may vary across different channels depending
on the limitations of the countries or regions in which the device is used.
SOFTWARE FEATURES
Wireless Configurations Pharos MAXtream TDMA Technology
802.11b/g/n Modes
Selectable Channel Width: 5/10/20/40MHz
Automatic Channel Selection
Transmission Power Control
Dynamic Frequency Selection (DFS)
WDS Enable/Disable
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption
SSID Broadcast Enable/Disable
Multi-SSID with VLAN Tagging (AP mode only)
Distance/ACK Timeout Setting
Wireless MAC Address Filter
Wireless Advanced:
> Beacon Interval/RTS Threshold/Fragmentation
>Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
Management Discovery and Remote Management via Pharos Control application
HTTP/HTTPS Web-based management
System Log
SNMP Agent(v2c)
Ping Watch Dog
Dynamic DDNS
SSH Server
System Tools Wireless Signal Quality Indicators:
Signal Strength/Noise/Transmit CCQ/CPU/Memory
Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
Spectrum Analyzer
Speed Test
Ping
Traceroute
System-level Optimizations Optimized IGMP Snooping/Proxy for multicast applications
Hardware watch dog
POE ADAPTER FEATURES
Dimensions(W x D x H) 85.8×43.9×31.9 mm
Interfaces 1 AC Jack with Earth Ground
1 10/100/1000Mbps Shielded Ethernet Port (Power + Data)
1 10/100/1000Mbps Shielded Ethernet Port (Data)
Button Remote Reset Button
Power Status LEDs Green
Input 100-240VAC, 50/60Hz
Output 24VDC, 0.5A Max
+4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
Efficiency >80%
Certifications CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
OTHERS
Certification CE, FCC, RoHS, IPX5

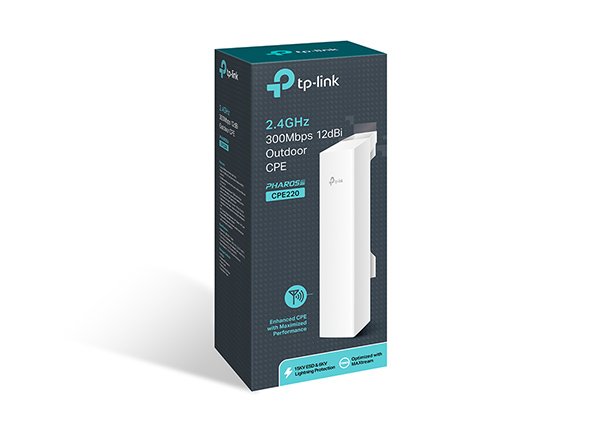

Package Contents Outdoor Wireless CPE
24V 0.5A Passive PoE Adapter
Pole Mounting Straps
AC Power Cord
Installation Guide
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7,
MAC OS, NetWare, UNIX or Linux.
Note: We recommend you to use one of following Web browsers for an improved user
experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.
Environment Operating Temperature: -40℃~70℃ (-40℉~158℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing
