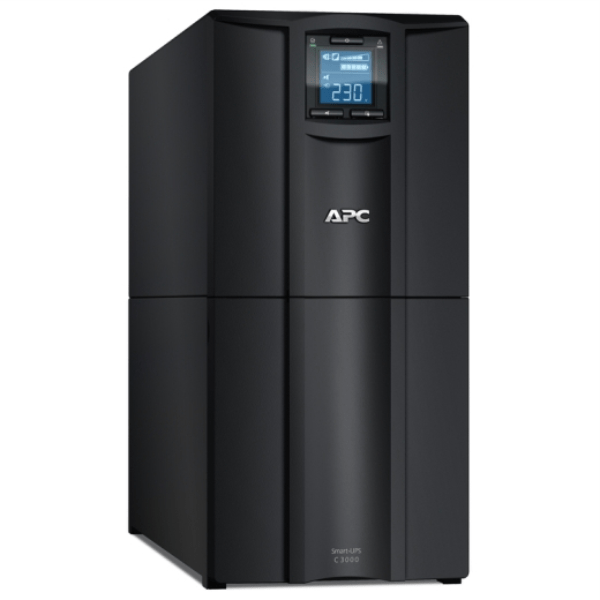

APC Smart-UPS 3000VA Overview
Intelligent and efficient network power protection from entry level to scalable runtime. The APC Smart-UPS 3000VA LCD 230V (SMT3000I) is an ideal UPS for servers, point-of-sale, routers, switches, hubs, and other network devices.
Reliable Line-Interactive Protection
With a robust 3000VA (2700W) capacity and a line-interactive design, this UPS ensures your equipment stays powered during utility outages and voltage fluctuations. Automatic Voltage Regulation (AVR) with Boost and Trim corrects low and high voltage conditions without switching to battery, extending battery life and improving efficiency.
APC Smart-UPS 3000VA – Pure Sine Wave Output
Delivers clean, pure sine wave power, protecting sensitive electronics and ensuring compatibility with active PFC power supplies commonly found in servers and networking equipment.
Multiple Outlets for Flexible Protection
Eight IEC C13 and one IEC C19 outlet allow a variety of devices to be connected for comprehensive protection, making this UPS suitable for protecting multiple pieces of critical equipment at once.
Intuitive LCD Interface
A bright, multi-function LCD status and control display provides clear, accurate information in multiple languages, with easy-to-use navigation keys for local configuration.
Expandable and Manageable
The SmartSlot allows for an optional network management card, letting you monitor and manage the UPS remotely. USB and serial connectivity support graceful shutdown using APC’s free PowerChute Business Edition software.
User-Replaceable, Hot-Swappable Battery
The battery can be replaced by a trained user without powering down connected equipment, reducing Mean Time to Repair (MTTR) and ensuring clean, uninterrupted power during battery replacement.
APC Smart-UPS 3000VA Specifications
| Part Number |
SMT3000I |
| Output Power Capacity |
2700W / 3000VA |
| Topology |
Line-interactive |
| Waveform Type |
Pure sine wave |
| Nominal Output Voltage |
230V (configurable for 220/230/240V) |
| Nominal Input Voltage |
230V |
| Output Connections |
8x IEC C13, 1x IEC C19 |
| Runtime (Full Load) |
Approx. 5.1 minutes |
| Runtime (Half Load) |
Approx. 15.1 minutes |
| Efficiency |
Up to 98.1% |
| Battery Type |
Maintenance-free sealed lead-acid, user-replaceable and hot-swappable |
| Replacement Battery |
RBC55 |
| Typical Recharge Time |
3 hours (to 90% capacity) |
| Interface |
Multi-function LCD, SmartSlot, USB, Serial |
| Management Software |
APC PowerChute Business Edition (free) |
| Form Factor |
Tower |
| Condition |
New |
| Warranty |
1 Year |
Related
Main
Run time for load
2700W
Min-max: 270-2700 W
5min 4s
Max. Capacity Used
100 %
Main Input Voltage
230 V
Other Input Voltage
220 V
240 V
Main Output Voltage
230 V
rated power in W
2700 W
rated power in VA
3000 VA
plug standard
IEC 320 C20
Schuko CEE 7 / EU1-16P
BS1363A British
nb of power socket outlets
8 IEC 320 C13
2 IEC Jumpers
1 IEC 320 C19
number of rack unit
0U
number of cables
1
battery type
Lead-acid battery
provided equipment
CD with software
Documentation CD
Smart UPS signalling RS-232 cable
USB cable
General
Number of power module filled slots
0
Number of power module free slots
0
redundant
No
Physical
colour
Black
height
43.5 cm
width
19.7 cm
depth
54.4 cm
net weight
52.5 kg
mounting location
Front
mounting preference
No preference
mounting mode
Not rack-mountable
two post mountable
0
USB compatible
Yes
Input
input voltage limits
151…302 V adjustable
160…286 V
network frequency
50/60 Hz +/- 3 Hz auto-sensing
Output
harmonic distortion
Less than 5 % at full load
Maximum configurable power in VA
3000 VA
Maximum configurable power in W
2700 W
Transfer time
2 ms typical
UPS type
Line interactive
Wave type
Sine wave
output frequency
47…53 Hz for 50 Hz nominal sync to mains
57…63 Hz for 60 Hz nominal sync to mains
Conformance
product certifications
CE
CSA
EAC
RCM
VDE
standards
EN/IEC 62040-1
EN/IEC 62040-2
Environmental
acoustic level
53 dBA
heat dissipation
375 Btu/h
operating altitude
0…10000 ft
ambient air temperature for operation
0…40 °C
ambient air temperature for storage
-15…45 °C
storage altitude
0.00…15240.00 m
relative humidity
0…95 %
storage Relative Humidity
0…95 %
Batteries & Runtime
Run Time
View Runtime Graph
Efficiency
View Efficiency Graph
additional information
Configurable for 220 : 230 or 240 nominal output voltage
extended runtime
1
number of battery filled slots
0
number of battery free slots
0
Battery recharge time
3 h
number of battery replacement quantity
1
battery life
3…5 year(s)
Battery power in VAH
816 VAh runtime
battery charger power
271 W rated
Communications & Management
alarm
Alarm when on battery : distinctive low battery alarm : configurable delays
control panel
Multifunction LCD status and control console
Emergency power off
Yes
free slots
1
Surge Protection and Filtering
Surge energy rate
365 J
noise suppression
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Packing Units
Package 1 Weight
63.7 kg
Package 1 Height
69.9 cm
Package 1 width
38.1 cm
Package 1 Length
76.2 cm
SCC14
731304268710
Number of Units in Package 3
9
Contractual warranty
Warranty
3 years repair or replace (excluding battery) and 2 years for battery, optional on-site warranties available, optional extended warranties available
