The Ubiquiti UniFi U7 Long-Range (U7-LR) is a Wi-Fi 7 access point (AP) designed for extended coverage and high-performance wireless connectivity. As part of the UniFi ecosystem, it is managed through the UniFi Network Application and is suitable for both high-density and large-area deployments, such as open offices, schools, and warehouses.

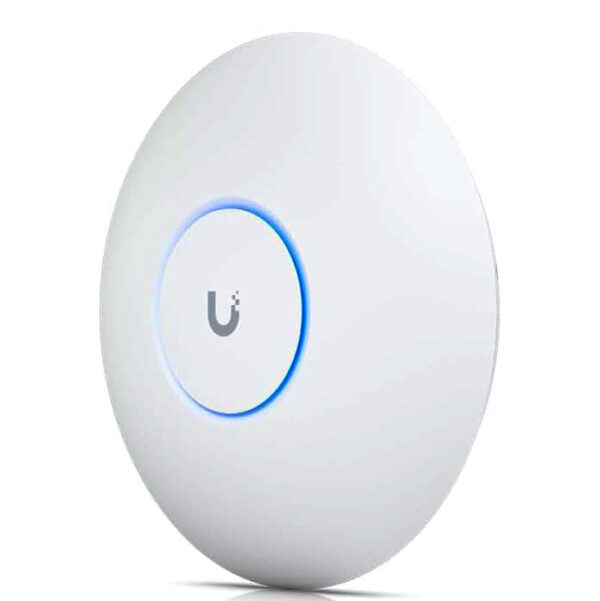

Ubiquiti Unifi Access Point U7 Long Range
Key features
WiFi 7 technology: Supports the latest Wi-Fi 7 (802.11be) standard for next-generation wireless performance.
Dual-band: Operates on the 2.4 GHz and 5 GHz bands, offering a combined throughput of up to 4988 Mbps.
Long-range coverage: Features an internal high-gain antenna array engineered for extended signal strength over large areas, estimated at about 1,750 square feet (160 square meters).
High client capacity: Can handle over 300 concurrent client connections.
2.5 GbE uplink: Equipped with a 2.5 Gigabit Ethernet port for high-speed wired backhaul, supporting Power over Ethernet (PoE+).
Advanced wireless technology: Utilizes Multi-Link Operation (MLO), MU-MIMO, and OFDMA technologies to improve signal clarity and efficiency, especially in dense network environments.
Robust design: Has an IP54-rated enclosure, offering resistance to dust and light water splashes for semi-outdoor installations.
₦320,000.00
Dimensions
Ø175.7 x 43 mm (Ø6.9 x 1.7″)
WiFi Standard
WiFi 7
Spatial Streams
5
Coverage Area
160 m² (1,750 ft²)
Max. Client Count
300+
Uplink
2.5 GbE
Mounting
Ceiling, Wall (Plastic Mounting Plate included)
Power Method
PoE
MIMO
5 GHz
3 x 3 (DL/UL MU-MIMO)
2.4 GHz
2 x 2 (DL/UL MU-MIMO)
Max. Data Rate
5 GHz
4.3 Gbps (BW160)
2.4 GHz
688 Mbps (BW40)
Antenna Gain
5 GHz
6 dBi
2.4 GHz
4 dBi
Max. TX Power
5 GHz
27 dBm
2.4 GHz
26 dBm
Supported Data Rates
802.11be (WiFi 7)
7.3 Mbps to 4.3 Gbps (MCS0 – MCS13 NSS1/2/3, EHT 20/40/80/160)
802.11ax (WiFi 6)
7.3 Mbps to 3.6 Gbps (MCS0 – MCS11 NSS1/2/3, HE 20/40/80/160)
02.11ac (WiFi 5)
6.5 Mbps to 2.6 Gbps (MCS0 – MCS9 NSS1/2/3, VHT 20/40/80/160)
802.11n
6.5 Mbps to 450 Mbps (MCS0 – MCS23 , HT 20/40)
Wireless Meshing
✓
Band Steering
✓
802.11v BSS Transition Management
✓
802.11r Fast Roaming
✓
802.11k Radio Resource Management (RRM)
✓
Advanced Radio Management
✓
Passpoint (Hotspot 2.0)
✓
Captive Hotspot Portal
Custom Branding Landing Page
✓
Voucher Authentication
✓
Payment-Based Authentication
✓
External Portal Server Support
✓
Password Authentication
✓
Guest Network Isolation
✓
Private Pre-Shared Key (PPSK)
✓
WiFi Speed Limiting
✓
Client Device Isolation
✓
WiFi Schedules
✓
RADIUS over TLS (RadSec)
✓
Dynamic RADIUS-assigned VLAN
✓
Max. Power Consumption
14W
Supported Voltage Range
42.5—57V DC
Networking Interface
(1) 2.5 GbE RJ45 port
Weight
448 g (15.8 oz)
Management
Ethernet
Enclosure Material
Polycarbonate, aluminum alloy
Mount Material
Polycarbonate, galvanized steel (SGCC)
LEDs
System
White/Blue
Channel Bandwidth
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160 (MHz)
NDAA Compliant
✓
Certifications
CE, FCC, IC, Anatel
Ambient Operating Temperature
-30 to 50° C (-22 to 122° F)
Ambient Operating Humidity
5 to 95% noncondensing
Application Requirements
UniFi Network
Version 9.1.120 and later
Mobile App
iOSâ„¢ version 10.20.2 and later Androidâ„¢ version 10.21.7 and later
