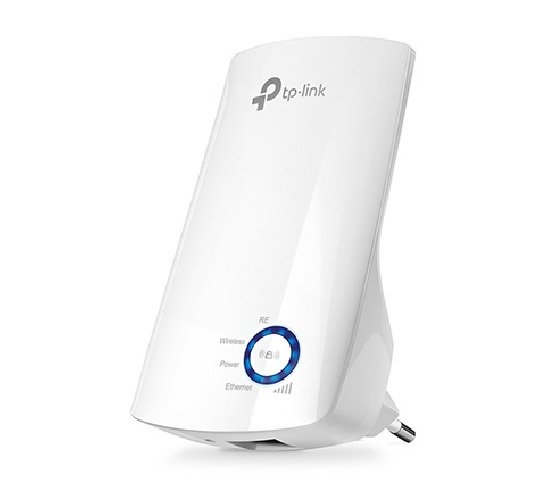

Boost Your Wireless Network
Tired of Wi-Fi ’’dead zone’’? TP-LINK’s range extender connects to your router wirelessly, strengthening and expanding its signal into areas it can’t on its own. The device also reduces signal interference to ensure reliable Wi-Fi coverage throughout your home or office.
Easy Setup and Flexible Placement
Press the WPS button on your router and the Range Extender button on your 850RE within minutes to easily connect to the network. Once connected with an existing router, you can simply unplug and plug the TL-WA850RE back in a location for the best signal quality and coverage in your house, without needing to configure the extender again.
Ethernet Bridge
The TL-WA850RE’s single Ethernet port allows the Extender to function as a wireless adapter to connect wired devices like Blu-ray® players, gaming consoles, DVRs and Internet TVs. At the same time, the device can share the wireless network as well.
Smart Signal Indicator
Light5 signal lights show the strength of signal that TL-WA850RE receives from the existing router, which can help to find the right location to place the range extender. It’s recommended that you choose a location where at least 3 signal light blue in order to guarantee a good performance.
Tether App for Easy Use
Use any mobile device to easily access and manage various features, including the LED Control function’s Night Mode, which allows you to enjoy a more peaceful night’s sleep.
Related
Specifications
HARDWARE FEATURES
Plug Type     EU, UK, US
Interface      1 * 10/100M Ethernet Port (RJ45)
Button          RE (Range Extender) Button, Reset Button
Power Consumption         About 3W
Wireless Standards           IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Dimensions ( W x D x H )Â 4.3x 2.6 x 3.0in. (110.0 x 65.8 x 75.2mm)
Antenna       2 * internal
WIRELESS FEATURES
Frequency    2.4~2.4835GHz
Signal Rate  11n: Up to 300Mbps (dynamic)
11g: Up to 54Mbps (dynamic)
11b: Up to 11Mbps (dynamic)
Reception Sensitivity        270M: -68dBm@10% PER
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
Transmit Power     < 20 dBm (EIRP)
Wireless Modes     Range Extender
Wireless Functions WMM (Wi-Fi Multimedia)
Wireless MAC Address Filtering
Wireless Statistic
Domain Login Function
Wireless Security   64/128/152-bit WEP
WPA-PSK / WPA2-PSK
OTHERS
Certification RoHS
Package Contents  300Mbps Universal Wi-Fi Range Extender TL-WA850RE
RJ-45 Ethernet Cable
Resource CD
Quick Installation Guide
System Requirements      Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS, NetWare®, UNIX® or Linux.
Environment           Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
