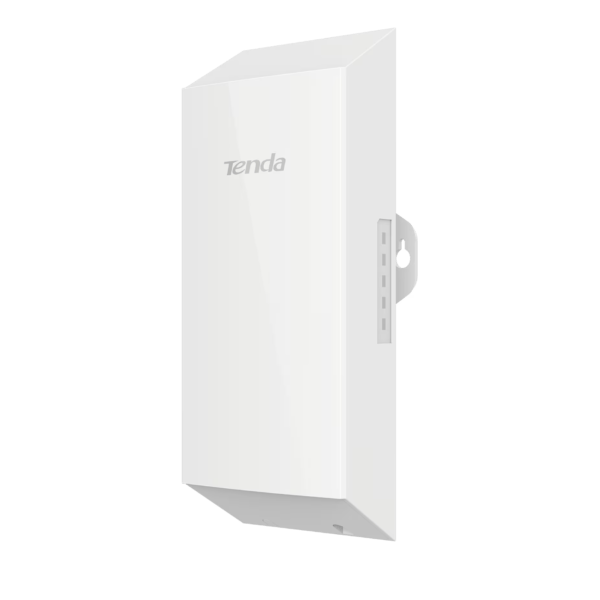

Tenda O1 500m Outdoor Point-to-Point CPE

The Tenda O1 is a 2.4GHz outdoor CPE built for WISP connections and long-distance wireless links, ideal for video surveillance and data transmission across separate buildings. Its 8dBi directional antenna maintains a stable signal, and auto-bridging technology lets two O1 units connect to each other automatically for a simple setup.

Key Features

2.4GHz, 802.11b/g/n wireless, up to 300Mbps
8dBi dual-polarized directional antenna for stable long-distance signal
Up to 500m point-to-point wireless data transmission
IP65 waterproof enclosure for outdoor deployment in various weather conditions
AP, Station, and WISP operating modes supported
Auto-bridging technology – two O1 units connect to each other automatically
Passive PoE powered, with up to 30m of flexible deployment using the included PoE Injector
Pole or wall mount deployment

Who This Is For

The O1 suits WISP operators sharing internet access wirelessly to a separate building or hotspot, property owners setting up point-to-point links for video surveillance or data transmission between structures, and installers who want simple auto-bridging setup between two matched units rather than complex manual configuration.

Full Specifications

Wireless & Range

Spec	Detail
Frequency	2.4GHz
Standard	802.11b/g/n
Max Data Rate	300Mbps
Antenna	8dBi, dual-polarized, directional
Beamwidth	60° horizontal, 60° vertical
Range	Up to 500m point-to-point

Design & Power

Spec	Detail
Ports	1x 10/100Mbps Ethernet
Modes	AP, Station, WISP
Waterproofing	IP65
Mounting	Pole or wall mount
Power	Passive PoE (9V/0.6A), included PoE injector, up to 30m deployment

Why Buy from Foretec Online

Genuine, sealed products sourced for the Nigerian market
Transparent Naira pricing with no hidden charges
Fast delivery across Abuja, Lagos, Kano, Port Harcourt, and beyond
Responsive customer support before and after your purchase

Order the Tenda O1 Today

This unit is new and sealed. Browse more access points and outdoor networking gear from Foretec, or order the Tenda O1 now.

SKU: O1 Categories: Networking, Access point

Based on 0 reviews

0.0 overall

Be the first to review “Tenda O1 500m Outdoor Point To Point CPE” Cancel reply

There are no reviews yet.

FAQs

Do I need two units to set up a point-to-point link?

Yes, typically you need two O1 units - one set to AP mode and one to Station mode - to create a long-distance wireless connection between two locations.

What is the maximum range of the O1?

Up to 500m point-to-point, depending on line of sight and environmental conditions.

Is the O1 waterproof for outdoor use?

Yes, it has an IP65-rated waterproof enclosure suitable for outdoor deployment.

What is the difference between the O1 and O1-5G?

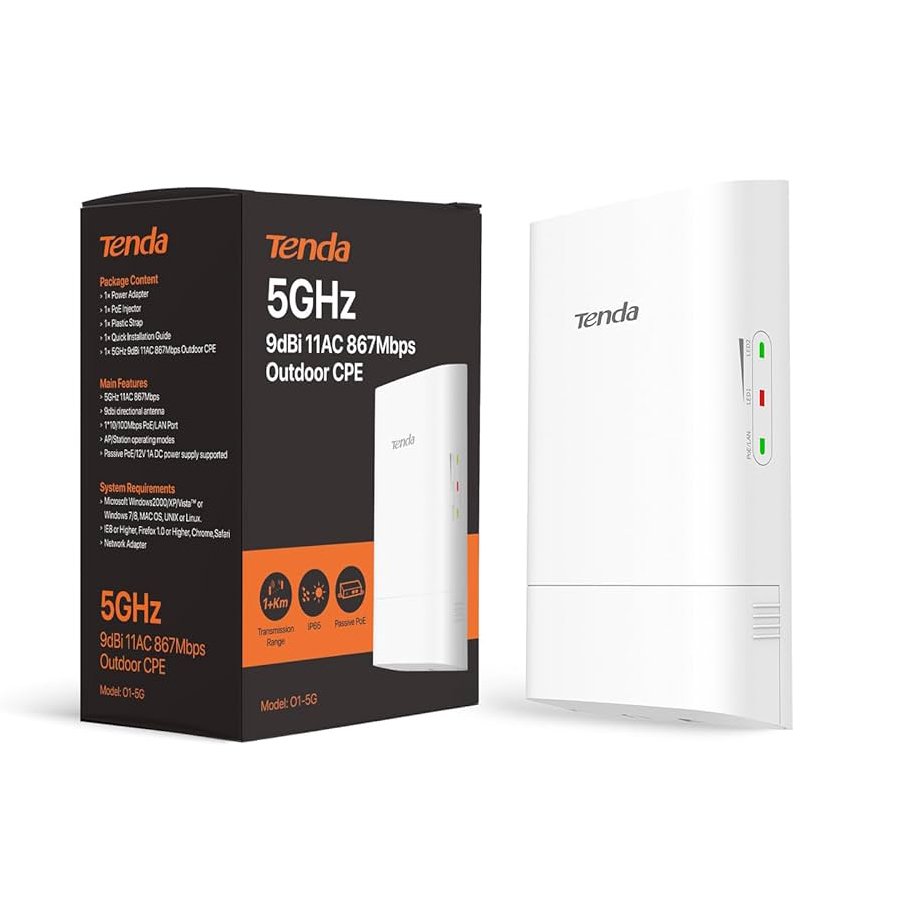

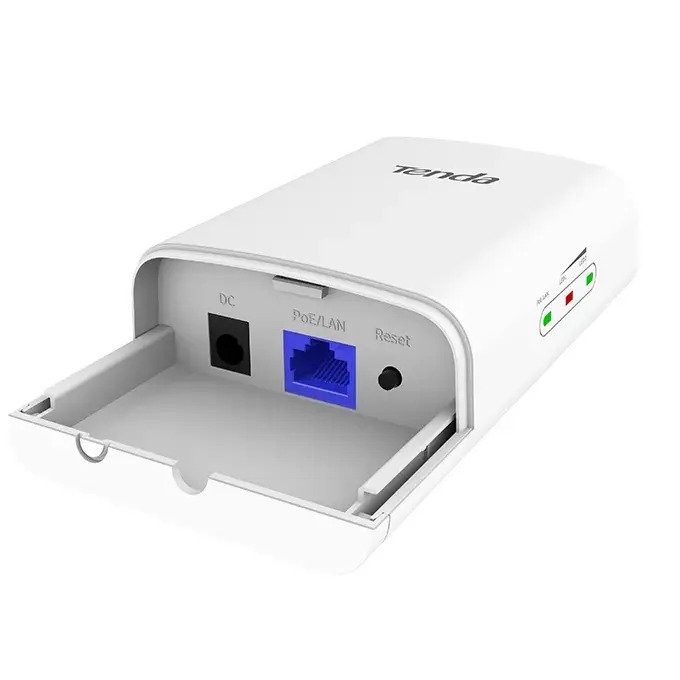

The O1 operates on the 2.4GHz band at up to 300Mbps, while the O1-5G operates on 5GHz at up to 867Mbps with a longer 1km range. Confirm which frequency band suits your deployment before ordering.

Is this unit new?

Yes, this unit is sold new and sealed by Foretec.
