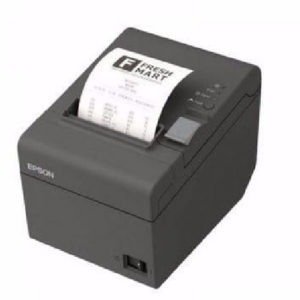

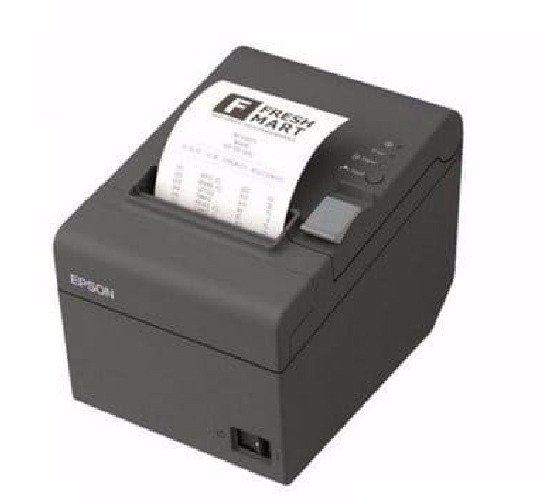

Epson TM-T20III -011
Overview
The combination of its fast print speeds, high reliability and economical operation, make this printer a must-have for small retail and speciality stores, hospitality venues and grocery stores.
Affordable
This easy-to-use model is our entry-level POS receipt printer and has an 80mm printing width. Its Automatic Paper Reduction feature reduces top and bottom margins, line feed width and barcode height, allowing for flexible receipt printing. This monitors and controls the amount of paper used. Paper costs are minimised by printing the top logo of the next receipt before cutting, so the top margin is further reduced by 12mm.
Reliable
With the mean time between failures (MTBF) of 360,000 hours and a mechanism life of 15 million lines, you can rely on the TM-T20III in high-volume printing environments.
Flexible
The TM-T20III comes with a built-in USB interface. You can select from two models: 1) USB + Serial, 2) Ethernet, making the model a long-term investment as it is possible to switch connectivity at any time.
Fast
Its print speed of 250mm/sec can save you time and its competitive price and running costs can save you money; ideal for when you need to beat queues quickly.
Related
Specification
Print method                                  Thermal line printing
Technology                                     Themal Line
Print Speed                                     250 mm/sec
Printing Font                                  ANK
Column capacity receipt            Paper width 80 mm, 48 / 64
Character set                                 95 Alphanumeric, 18 set International, 128 x 43 Graphic
Characters per inch                      22.6 cpi / 16.9 cpi
Dot density                                     203 DPI x 203 DPI
Colour Printing                              Black
Printing Characters                      Text (incl. Euro symbol), Graphics, Barcode
Paper Types                                    Receipt
Paper size roll paper                    79.50 ± 0.50 (W) mm x dia 83.00 mm,
57.50 ± 0.50 (W) mm x dia 83.00 mm
Interfaces                                        RS-232, USB 2.0 Type B, Drawer kick-out
Data Buffer                                     4 kB or 45 Bytes
Power Supply                                 AC adapter, C1
Power Consumption                    Standby: 0.1 A, Mean: 1.8 A
Operating Voltage                        24 V
Product dimensions                     140‎ x 199 x 146 mm (Width x Depth x Height)
Product weight                              1.7 kg
Colour                                               Black (EBCK)
Installation                                      horizontally, vertically, vertically with wall hanging bracket
Interface connectors                   D.K.D. function (2 drivers)
Noise Level                                     Operation: 55 dB (A)
Supported Humidity                    Operation 10% – 90%, Storage 10% – 90%
Supported Temperature             Operation 5° C – 45° C, Storage -10° C – 50° C
Reliability                                        60,000,000 MCBF (Lines), 360,000 MTBF (Hours)
Auto Cutter Life                            1,500,000 Cuts
Printer Life                                      15,000,000 lines
Print Head Life                              150 km – 150,000,000 pulses
EMC Standards                              FCC class A, CE marking, EN55022 Class A
Safety standards                           UL, CSA, TÜV
Cutter                                               Partial Cut
Sensors                                            Roll paper cover open sensor, Paper End Sensor, Paper Near End Sensor
Paper Saving Function                Yes
What’s in the box                         AC adapter, C1, CD Manual, EURO AC cable, Main unit, Paper roll spacer, Power switch cover, Roll paper, Rubber feet, Setup guide, USB cable, Wall hanging bracket, Warranty document
