• MikroTik HAP Ax2 Wi-Fi

Mikrotik hap ax2 Wireless Gigabit Router Wifi 6

Key Features

  • Model: MikroTik hAP ax² Wireless Gigabit Router (C52iG-5HaxD2HaxD-TC)
  • Wi-Fi 6 (802.11ax): Dual-band, dual-chain radio with Wave2 support on both 2.4 GHz and 5 GHz
  • Antennas: 4 dBi on the 2.4 GHz band, 4.5 dBi on the 5 GHz band
  • Wireless speed: Up to 574 Mbit/s (2.4 GHz), up to 1200 Mbit/s (5 GHz)
  • Processor: Quad-core ARM64 CPU (IPQ-6010) at 864 MHz
  • Memory: 1 GB RAM
  • Storage: 128 MB NAND flash
  • Ports: 5x Gigabit Ethernet ports
  • PoE: Port 1 supports both passive PoE-in (to power the router) and passive PoE-out (to power a downstream device)
  • Operating System: RouterOS v7, included and licensed, no separate purchase needed
  • Condition: New, sealed

165,000.00

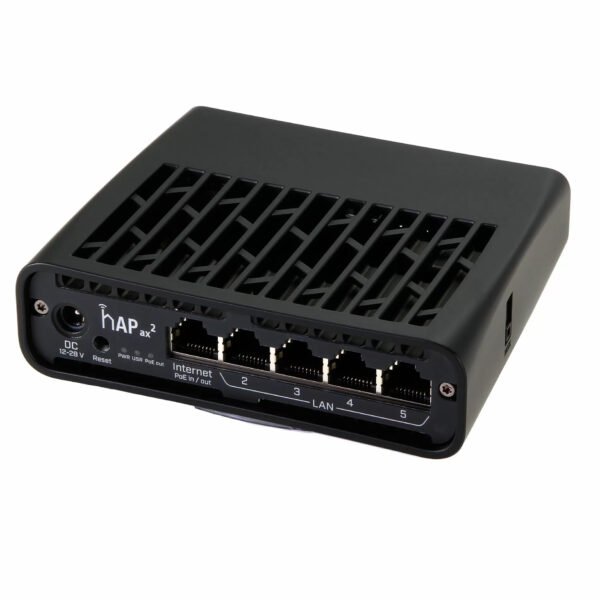

MikroTik hAP ax² Wireless Gigabit Router, Wi-Fi 6 (C52iG-5HaxD2HaxD-TC)

The hAP ax² is MikroTik’s Generation 6 successor to the popular hAP ac², built for home and small office networks that need Wi-Fi 6 speed, a capable CPU for advanced RouterOS features, and Gigabit wired ports, all in a compact, wall-mountable case.

MikroTik HAP Ax2 Wi-Fi 6 Gigabit Router – Faster, Stronger Wireless

A dual-band, dual-chain 802.11ax radio with Wave2 support delivers wireless speeds of up to 574 Mbit/s on the 2.4 GHz band and up to 1200 Mbit/s on the 5 GHz band (AX1800 class), a meaningful step up from the previous hAP generation for streaming, large file transfers, and busy multi-device homes.

Enough Power for Advanced RouterOS Features

A quad-core 864 MHz ARM64 CPU paired with 1GB of RAM handles demanding tasks like complex firewall rules, IPsec hardware encryption, and multiple simultaneous RouterOS processes without bogging down. WPA3 wireless encryption adds stronger network security on top.

MikroTik HAP Ax2 Wi-Fi – Flexible Powering with PoE

Port 1 supports both passive PoE-in, so you can power the router itself over Ethernet, and passive PoE-out (up to 16.8W), letting you power a downstream device like an IP camera or a second access point from the same port, without extra power adapters cluttering your setup. A 24V 1.2A power adapter is included if you’d rather power it via the DC jack instead.

MikroTik HAP Ax2 Wi-Fi 6 Gigabit Router – Mount It Anywhere

The hAP ax² can be mounted vertically, horizontally, or on a wall using the included K-47 wall mount set, without any loss of signal strength.

RouterOS Included

RouterOS v7 (license level 4) comes preinstalled and licensed, so there’s no separate software purchase needed. Free software updates are included for the life of the product, or a minimum of 5 years from date of purchase.

Full Specifications

Model MikroTik hAP ax²
Product Code C52iG-5HaxD2HaxD-TC
CPU Quad-core ARM64, IPQ-6010, 864 MHz
RAM 1 GB
Storage 128 MB NAND
Wireless Dual-band, dual-chain 802.11ax (Wi-Fi 6), AX1800 class
2.4 GHz Speed / Antenna Up to 574 Mbit/s, 4 dBi
5 GHz Speed / Antenna Up to 1200 Mbit/s, 4.5 dBi
Ethernet Ports 5x Gigabit (10/100/1000)
PoE Port 1: passive PoE-in and passive PoE-out (up to 16.8W)
Operating System RouterOS v7, License Level 4 (included)
Included Accessories hAP case base, K-47 wall mount set, 24V 1.2A power supply
Condition New

Order Today

Get the MikroTik hAP ax² Wireless Gigabit Router at ₦165,000. Browse more MikroTik and networking routers. Order today and get fast delivery across Nigeria.

SKU: C52iG-5HaxD2HaxD-TC Categories: ,

Based on 0 reviews

0.0 overall
0
0
0
0
0

Be the first to review “Mikrotik hap ax2 Wireless Gigabit Router Wifi 6”

There are no reviews yet.

FAQs

What is the product code of the MikroTik hAP ax²?
The official MikroTik product code is C52iG-5HaxD2HaxD-TC.
What wireless speeds does the hAP ax² support?
It supports up to 574 Mbit/s on the 2.4 GHz band and up to 1200 Mbit/s on the 5 GHz band (AX1800 class Wi-Fi 6).
Does the hAP ax² support PoE?
Yes. Port 1 supports both passive PoE-in, to power the router, and passive PoE-out (up to 16.8W), to power a downstream device such as a camera or access point.
Do I need to buy RouterOS separately?
No. RouterOS v7 (License Level 4) comes preinstalled and licensed on the device at no extra cost.
Can the hAP ax² be wall-mounted?
Yes, it can be mounted vertically, horizontally, or on a wall using the included K-47 wall mount set.
What is the price of the MikroTik hAP ax² in Nigeria?
The MikroTik hAP ax² Wireless Gigabit Router is priced at ₦165,000 on Foretec Online.

Specifications

Details
Product code C52iG-5HaxD2HaxD-TC
Architecture ARM 64bit
CPU IPQ-6010
CPU core count 4
CPU nominal frequency 864 MHz
Switch chip model IPQ-6010
RouterOS license 4
Operating System RouterOS v7
Size of RAM 1 GB
Storage size 128 MB
Storage type NAND
MTBF Approximately 100’000 hours at 25C
Tested ambient temperature -40°C to 50°C
IPsec hardware acceleration Yes
Suggested price $99.00

Wireless capabilities

Details
Wireless 2.4 GHz Max data rate 574 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n/ax
Antenna gain dBi for 2.4 GHz 4
Wireless 2.4 GHz chip model QCN-5022
Wireless 2.4 GHz generation Wi-Fi 6
Wireless 5 GHz Max data rate 1200 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac/ax
Antenna gain dBi for 5 GHz 4.5
Wireless 5 GHz chip model QCN-5052
Wireless 5 GHz generation Wi-Fi 6
WiFi speed AX1800

Ethernet

Details
10/100/1000 Ethernet ports 5
Number of 1G Ethernet ports with PoE-out 1

Powering

Details
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 12-28 V
Max power consumption 27 W
Max power consumption without attachments 12 W
PoE in Passive PoE
Cooling type Passive
PoE in input Voltage 18-28 V

PoE-out

Details
PoE-out ports Ether 1
PoE out Passive PoE
Low voltage PoE-Out current limit 600 mA
Max total out (A) 0.6 A
Total output current 0.6
Total output power 16.8W

Certification & Approvals

Details
Certification CE, FCC, IC, EAC, ROHS
IP 20

Other

Details
CPU temperature monitor Yes
Mode button Yes

Wireless specifications

2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 27 -100
11MBit/s 27 -94
6MBit/s 27 -96
54MBit/s 25 -80
MCS0 27 -96
MCS7 24 -75
MCS9 22 -70
MCS11 20 -67
5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 26 -96
54MBit/s 23 -80
MCS0 26 -96
MCS7 22 -75
MCS9 20 -70
MCS11 18 -67
