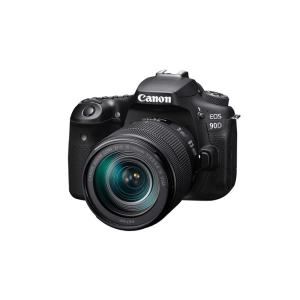

Canon EOS 90D

22.3mm x 14.8mm CMOS

Approx. 32.5 MP

Approx. 34.4 MP

3:2

Built-in/Fixed

EOS integrated cleaning system

Primary Colour

DIGIC 8

EF/EF-S

Equivalent to 1.6x the focal length of the lens

Optical Image Stabilizer on compatible lenses.
Movie: Movie Digital IS

Via optical viewfinder:
TTL-CT-SIR with a CMOS sensor

Via liveview on LCD screen:
Dual Pixel CMOS AF System. Phase detection pixels built onto imaging sensor ¹

45 cross-type AF points
(45 f/5.6 cross-type AF points, 27 f/8 points [9 cross-type], centre point is f/2.8 and f/5.6 dual cross-type) ^2 3

EV -3 – 18 (at 23°C & ISO100)

AI Focus
One Shot
AI Servo

Automatic selection: 45 point AF
Manual selection: Single point AF
Manual selection: Spot AF
Manual selection: Zone AF
Manual selection: Large Zone AF
AF points can be selected separately for vertical and horizontal shooting

Indicated by a transmissive LCD in viewfinder and Quick Control screen

Yes, up to 8m

AF points can be selected separately for vertical and horizontal shooting

Intermittent firing of built-in flash or emitted by optional dedicated Speedlite

Selected on lens

Yes

+/- 20 steps (wide and tele setting for Zooms)
Adjust all lenses by same amount
Adjust up to 40 lenses individually
Adjustments remembered for lens by serial number

Via optical viewfinder:

220,000-pixel RGB+IR metering sensor
Metering with the area divided into 216 segments (18 × 12)
(1) Evaluative metering (linked to all AF points)
(2) Partial metering (approx. 6.5 % of viewfinder)
(3) Spot metering (approx. 2.0 % of viewfinder)
(4) Center-weighted average metering

Via liveview on LCD screen:

(1) Evaluative metering (384 zones)
(2) Partial metering (approx. 4.5 % of LCD screen)
(3) Spot metering (approx. 2.6 % of LCD screen)
(4) Center-weighted average metering

Via optical viewfinder:
EV 1-20 (at 23 °C with 50mm f/1.4 lens ISO 100)

Via liveview on LCD screen:
EV -2-20 (at 23 °C, ISO 100, evaluative metering)

Movie: EV 0-20 (at 23 °C, ISO 100, evaluative metering)

Auto: In One-shot AF mode with evaluative metering exposure is locked when focus is achieved.
Manual: By AE lock button in creative zone modes.

+/-5 EV in 1/3 or 1/2 stop increments (can be combined with AEB).

2, 3, 5 or 7 Shots +/-3 EV 1/3 or 1/2 stop increments

Auto (100-25600), 100-25600 (in 1/3-stop or whole stop increments)
ISO can be expanded to H: 51200
During Movie shooting: Auto (100-12800), 100-12800 (in 1/3-stop or whole stop increments) ISO can be expanded to H: 25,600

Electronically-controlled focal-plane shutter

30-1/8000 sec (1/2 or 1/3 stop increments), Bulb (Total shutter speed range. Available range varies by shooting mode). Electronic shutter up to 1/16000

Auto white balance with the imaging sensor

AWB (Ambience priority, White priority), Daylight, Shade, Cloudy, Tungsten light, White
Fluorescent light, Flash, Custom, Colour Temperature Setting.
White balance compensation:
1. Blue/Amber +/-9
2. Magenta/ Green +/-9.

Yes, 1 setting can be registered

+/-3 levels in single level increments
3 bracketed images per shutter release.
Selectable Blue/Amber bias or Magenta/ Green bias.

Pentaprism

Approx. 100%

Approx. 0.95x ⁴

Approx. 22mm (from eyepiece lens centre)

-3 to +1 m-1 (dioptre)

Fixed (Transmissive LCD screen)

Quick-return half mirror (Transmission: reflection ratio of 40:60, no mirror cut-off with EF 600mm f/4 IS USM or shorter)

AF information: AF points, focus confirmation, AF area selection mode
Exposure information: Shutter speed, aperture value, ISO speed (always displayed), AE lock, exposure level/compensation, spot metering circle, exposure warning, AEB.
Flash information: Flash ready, high-speed sync, FE lock, flash exposure compensation, red-eye reduction light.
Image information: Card information, maximum burst (2 digit display), Highlight tone priority (D+).
Composition information: Grid, Electronic level, Aspect Ratio
Other information: Battery check, Alert symbol, Flicker Detection

Yes, with Depth of Field preview button.

Touch screen Vari angle 7.7cm (3.0″) 3:2 Clear View II TFT, approx. 1040K dots

Approx. 100%

Approx 170°

Anti smudge

Adjustable to one of seven levels

(1) Quick Control Screen
(2) Camera settings
(3) Electronic Level

12

up to 17mm focal length (35mm equivalent: 27mm)

Approx. 3 seconds

Auto, Manual flash, Integrated Speedlite Transmitter

1/250sec

+/- 3EV in 1/2 or 1/3 increments

Yes, with compatible External Flash

Yes

Yes

Yes/No

E-TTL II with EX series Speedlites, wireless optical multi-flash support

via camera menu screen

Scene Intelligent Auto (Stills and Movie), Creative Auto, SCN(Portrait, Landscape, Close-up, Sports, Night Portrait, Handheld Night Scene, HDR Backlight Control, Food, Kids, Candlelight, Group Photo, Panning), Creative filters, Program AE, Shutter priority AE, Aperture priority AE, Manual (Stills and Movie), Bulb, Custom1, Custom 2

Auto, Standard, Portrait, Landscape, Fine Detail, Neutral, Faithful, Monochrome, User Defined (x3)

sRGB and Adobe RGB

Highlight Tone Priority (normal plus enhanced)
Auto Lighting Optimizer (4 settings)
Digital Lens Optimizer
Long exposure noise reduction
High ISO speed noise reduction (4 settings)
Multi Shot Noise Reduction
Auto Correction of Lens Peripheral illumination and Chromatic aberration correction
Creative Assist
Creative filters (Grainy B/W, Soft focus, Fish-eye effect, Water painting effect, Toy camera effect, Miniature effect, HDR art vivid, HDR art bold, HDR art embossed, HDR art standard)
Multi-exposure
RAW image processing – during image Playback only
Resize to M or S1, S2

Single, Continuous L, Continuous H, Self timer (continuous, continuous panning, 2s+remote, 10s +remote), Silent single shooting, Silent continous shooting ⁵

Max. Approx. 10fps. (speed maintained for 58 JPEG and 25 RAW with UHS-II card)
Live view Max. Approx 11fps. with One-Shot AF, 7fps with Servo AF ^6 7

Built-in, number of shots selectable from 1-99 or unlimited. Bulb timer possible

Electronic viewfinder with image sensor

Approx. 100% (horizontally and vertically)

59.94 fps

Manual Focus (Magnify the image 5x or 10x at any point on screen)
Autofocus: Dual Pixel CMOS AF (Face detection and Tracking AF, Eye AF, FlexiZone-Multi, FlexiZone-Single), Tracking sensitivity adjustment (-2 to +2), acceleration tracking (-2 to +2) AF auto pt. switching (0 to +2)

Real-time evaluative metering with image sensor.
Evaluative metering, partial metering, spot metering, center-weighted average metering.

Grid overlay (x3), Histogram, Electronic level,

JPEG: Fine, Normal (Exif 2.31 compliant) / Design rule for Camera File system (2.0)
RAW: RAW (CR3 14-bit), CRAW (Compact RAW)
Digital Print Order Format [DPOF] Version 1.1 compliant

Yes, any combination of RAW + JPEG possible.

RAW: (3:2) 6960 x 4640, (4:3) 6160 x 4640, (16:9) 6960 x 3904, (1:1) 4640x 4640

JPEG 3:2 (L) 6960 x 4640, (M) 4800 x 3200, (S1) 3472 x 2320, (S2) 2400 x 1600
JPEG 4:3 (L) 6160 x 4640, (M) 4256 x 3200 (S1) 3072 x 2320 (S2) 2112 x 1600
JPEG 16:9 (L) 6960 x 3904, (M) 4800 x 2688 (S1) 3472 x 1952 (S2) 2400 x 1344
JPEG (1:1) (L) 4640 x 4640, (M) 3200 x 3200, (S1) 2300 x 2300 (S2) 1600 x 1600

In-camera RAW processing & Image Resize available in playback

MP4 [Video: MPEG-4 AVC/H.264, Audio: MPEG-4 AAC-LC (stereo)]

4K – 3840 x 2160 (29.97, 25 fps) ⁸
Full HD – 1920 x 1080 (119.88, 100, 59.94, 50, 29.97, 25 fps)⁸
HD – 1280 x 720 (59.94, 50 fps)
HDR – 1920 x 1080 (29.97, 25 fps)
4K Timelapse – 3840 x 2160 (29.97, 25 fps)

Max duration 29min 59sec, Max file size 4GB (If file size exceeds 4GB a new file will be created automatically except in Timelapse Movie mode. ExFat formatted cards have no file size limitation)

New folders can be manually created and selected

(1) Consecutive numbering
(2) Auto reset
(3) Manual reset

Aluminum alloy and polycarbonate resin with glass fiber

Approx. 701g (CIPA testing standard, including battery and memory card)

29 Custom Functions

User copyright information (can be set in camera)
Image rating (0-5 stars)

Yes/Yes

Yes

No

Yes

1.5x – 10x

(1) Single image with information (2 levels)
(2) Single image
(3) 4 image index
(4) 9 image index
(5) 36 image index
(6) 100 image index
(7) Jump Display
(8) Movie edit

Image selection: All images, by Date, Folder, Movies, Stills, Protect
Playback time: 1/2/3/5/10/20 seconds
Repeat: On/Off
Background music: On/Off
Transition effect: Off, Slide in 1, Slide in 2, Fade 1, Fade 2, Fade 3

Brightness: Yes
RGB: Yes

Yes

Erase: Single image, Select range, All images in folder, All images on card
Protection: Single image, select range, all images in folder, all images on a card

(1) Shooting menu (x6)
(2) Playback menu (x4)
(3) Wireless menu
(4) Setup menu (x5)
(5) Custom Functions menu
(6) My Menu

29 Languages
English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Ukraine, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Vietnamese, Hindi, Romanian, Turkish, Arabic, Thai, Simplified Chinese, Traditional Chinese, Korean, Malay, Indonesian, and Japanese

Update possible by the user.

USB Micro-B
Interface Cable IFC-600PCU

Wireless LAN (IEEE802.11b/g/n), (2.4 GHz only, 1-11 ch)

Camera Access Point: WPA2-PSK with AES encryption or open
Infrastructure: Shared key, with WEP encryption, WPA-PSK/WPA2-PSK with TKIP/AES encryption or open

Bluetooth® (Specification version 4.1, Bluetooth low energy technology) ⁹

HDMI mini output
Output of YCbCr 4:2:2, 8bit over HDMI for video streaming is possible with or without shooting info.
Output options include [With info], [Clean / 4K output], and [Clean / FHD output]. HDR output of photos to compatible TV supported
External microphone (3.5mm Stereo mini jack), Headphone socket (Stereo mini jack)

Canon Compact Photo Printers and PIXMA Printers supporting PictBridge via wireless LAN

Yes (via Wireless LAN)

SD, SDHC, SDXC (UHS-II compatible)

Windows 10 / 8.1 / 7 SP1 ¹⁰
Mac OS X 10.14 / 10.13 / 10.12

Digital Photo Professional 4
DPP Express

Picture Style Editor,
EOS Utility,
Image Transfer Utility
Picture Style editor
Camera Connect app available on iOS and Android devices with operating system iOS 11.4 (or later) or Android 5.0 (or later)

Rechargeable Li-ion Battery LP-E6N (supplied), built in for date & settings

Approx. 1300 (at 23°C, AE 50%, FE 50%)¹¹
Approx. 1200 (at 0°C, AE 50%, FE 50%)

6 levels + percentage

Power turns off after 1, 2, 4, 8, 15 or 30mins.

Eyecup Eb
Rubber Frame Eb, E-series Dioptric Adjustment Lens
Eyepiece Extender EP-EX15
Magnifier MG-Eb
Angle Finder C

Leather case EH21-L

Built in Wi-Fi transmission
Bluetooth functionilty with Camera Connect app requires smart device to be equipped with Bluetooth version 4.0 (or later). Also requires smart device to be using operating system iOS 11.4 (or later) or Android 5.0 (or later)

All EF and EF-S lenses

Canon Speedlites (90EX, 220EX, 270EX, 270EX II, EL-100, 320EX, 420EX, 430EX, 430EX II, 430EX III-RT, 470EX-AI, 550EX, 580EX, 580EX II, 600EX, 600EX-RT, Macro-Ring-Lite MR-14EX II, Macro Twin Lite MT-24EX, Speedlite Transmitter ST-E2, Speedlite Transmitter ST-E3-RT)

BG-E14

Remote Switch RS-60E3, Remote Controller RC-6, Remote Controller BR-E1, Timer Remote Controller TC-80N3 only when used with Remote Controller Adapter RA-E3

Directional Stereo Microphone DM-E1
GPS Reciever GP-E2
Hand Strap E2
