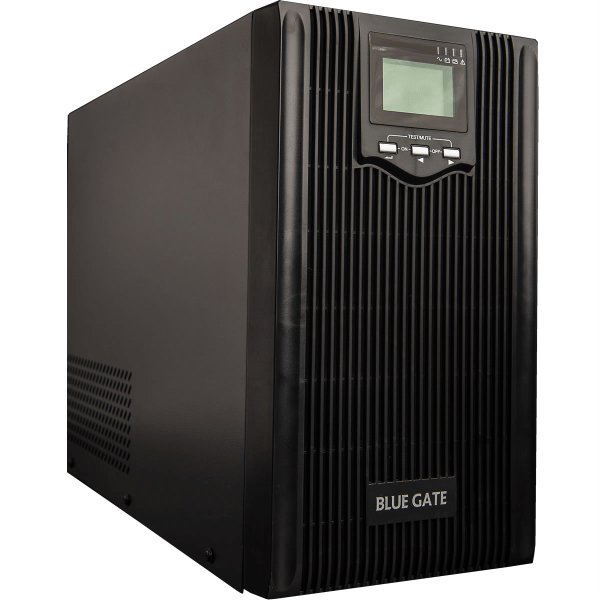

BG 3KVA Online UPS is a double conversion and high frequency UPS with 3 phase input and 3 phase output.
It has a Compact design of about 30%-50% smaller than others that allow charging current to be set by just an LCD display; and also makes the product fully compatible with existing products.
BG 3KVA Online UPS comfortably supports; Small and middle sized sever, Industry equipment, IT equipment Communication system and other networking equipment.
This is a pocket-friendly device that it suitable for critical-mission appliances and industry equipment.
Related
PHASEÂ Â Single phase with ground
Capacity (VA/Watts)Â Â Â Â Â Â Â 3000VA/2700W
INPUT
Nominal voltage              200/208/220/230/240VAC
AC Mode
Low line transfer
160Vac±5% @100%-80% load;
140Vac±5% @80%-70% load;
120Vac±5% @70%-60% load;
110Vac±5% @60%-0% load;
(Ambient Temp. <35>
Low line comeback
175Vac±5% @100%-80% load;
155Vac±5% @80%-70% load;
135Vac±5% @70%-60% load;
125Vac±5% @60%-0% load;
(Ambient Temp. <35>
High line transfer            300Vac ±5%
High line comeback        290Vac ±5%
Operating frequency range         40-70Hz
Power factor     0.99@100% load(Nominal Input Voltage)
Battery Type (Units)Â Â Â Â Â Â Â 12V/9AH (6 units)
Typical Recharge Time   4 hours to recover capacity
