Key Features

Run time for load:           1050W, 3m

Max. Capacity Used:       100%

Output power capacity: 1.05kWatts / 1.5kVA

Output Connections:       (6) IEC 320 C13 (Battery Backup)

Nominal Output Voltage: 230V

Nominal Input Voltage:   230V

Input Connections:           IEC-320 C14

Automatic Voltage Regulation (AVR): Automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment.

Cold-start capable: Provides temporary battery power when the utility power is out.

Intelligent SmartSlot: Mini slot supports various optional management cards which provide basic or essential monitoring, management and control features for the UPS.

LCD graphics display: Text and mimic diagrams that display modes of operation, system parameters and alarms.

Pure sine wave output on battery: Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.

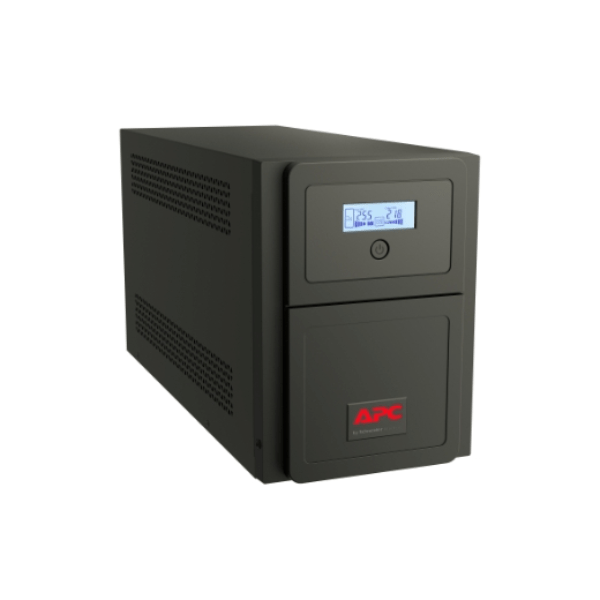

APC Easy UPS SMV 1500VA Features & Benefits

Features

Cold-start capable: Provides temporary battery power when the utility power is out.

Boost Automatic Voltage Regulation (AVR): Preserves battery life and maximizes runtime by correcting low voltages without discharging the battery.

Sleek design: Slim, modern design can be upright, flat, or wall-mounted to comfortably fit any electronics set-up and complement home décor.

Transformer-block spaced outlets: Protect equipment with input transformer blocks without blocking access to other receptacles.

Availability

Advanced Safety Features: Safeguard your Home UPS from overloads, excessive mains voltages, short circuits, installation mishaps and battery damage due to low voltage situations.

Intelligent battery management: Maximizes battery performance, life, and reliability through intelligent, precision charging.

Battery failure notification; Provides early-warning fault analysis on batteries enabling timely preventive maintenance

Manageability

Audible alarms: Provides notification of changing utility power and UPS power conditions

LED Indicators: Provide easy-to-read status of the unit and utility power conditions.

Protection

Battery and surge protected outlets: Back up and protect your hardware and data during power outages, surges and spikes.

Battery backup and surge protection: Outlets provide abundant runtime for network gateway equipment and other critical low-power devices, allowing for hours of internet access during a power outage.

Safety

Safety-agency approved: Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Technical Specifications

Output

Max Configurable Power (Watts):   1.05kWatts / 1.5kVA

Output Frequency (not synced):       50/60 Hz +/-1 Hz

Load Crest Factor:                               3 : 1

Topology:                                             Line Interactive

Waveform type:                                 Sine wave

Transfer Time:                                   2ms typical

Input

Input frequency:                               45 – 65 Hz (auto sensing)

Input voltage range for main operations: 160 – 295V

Number of Power Cords:                     1

Other Input Voltages:                           220, 240

Batteries & Runtime

Battery type:         Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Typical recharge time:           4hour(s)

Expected Battery Life (years): 3 – 5

Battery Charge Power (Watts):   54Watts

Battery Volt-Amp-Hour Capacity: 216

Communications & Management

Interface Port(s):   DB-9 RS-232, Intelligent Smart Slot, USB

Audible Alarm:     Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Physical

Maximum Height:     220MM, 22.0CM

Maximum Width:     160MM, 16.0CM

Maximum Depth:     410MM, 41.0CM

Net Weight:               17.8KG

Shipping weight:     20.75KG

Shipping Height:      339MM, 33.9CM

Shipping Width:       272MM, 27.2CM

Shipping Depth:       508MM, 50.8CM

Environmental

Operating Temperature:         0 – 40 °C

Operating Relative Humidity: 0 – 95 (non-condensing) %

Operating Elevation:               0-3000meters

Storage Temperature:           -10 – 40 °C

Storage Relative Humidity:     0 – 95 %

Storage Elevation:                     0-3000meters

Audible noise at 1 meter from surface of unit: 45.0dBA

Conformance

Approvals:   CE

Standard warranty: 1 year repair or replace

Sustainable Offer Status

RoHS:     Compliant

REACH:   REACH: Contains SVHCs
